Quick Details

  • Brand Name: SFX
  • Model Number: HDES11
  • Place of Origin: Guangdong, China (Mainland)
  • case: Wireless HDMI Extender 50M HDMI loop-out
  • Feature: wireless transmit, pass wall, HDMI loop out
  • input: hdmi signal
  • output: hdmi signal
  • HDTV Resolutions: 480p,576p,720p,1080p
  • warranty: 1 years
  • function: extend the hdmi signal for at least 50m.
  • HDCP: HDMI 1.2
  • Power Supply:: DC5V
  • Power Consumption: HDMI sender : 3W , HDMI Receiver :3W

Packaging & Delivery

Packaging Details color box, or according to customers request.
Delivery Time 7 DAYS

Wireless HDMI Extender 50M HDMI loop-out

Product Description

  Wireless HDMI Extender 50M HDMI loop-out

This HDMI Wireless extender uses 5G technology which enables high-speed, high performance wireless communication among consumer electronics, computer and mobile devices.

It combines high bandwidth capacity to robust error-correction ,to deliver uncompressed HD video, multi-channel surround sound.

It can go through the wall, and the transmitting distance of wireless can be up to 50m in the open area.

Features

1.Support HDMI 1.4a version

2.Support HDCP1.3

3.Wireless conform to IEEE802.15.4 and IEEE802.11

4.Support input & output the highest resolution up to 1920x1080/60Hz

5.Support the highest rate 1.485G and TMDS clock up to 148.5Mhz

6.Working in 5G frequency band, it is not easy to be interfered by Wireless signals

7.The longest distance can be 50m (Under the condition of open area)

8.5V/1.5A power adaptor


Specifications:

HDMI version  …………………………………………………....…………….. HDMI 1.4a

HDMI resolution ………………………………....….…….…......…up to 1920x1080/60Hz

Support audio format……...............….….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth……………………………..…………………………….....…….148.5MHz

Max baud rate……………….…….…….…..………….....……………………..1.485Gbps

Input cable distance….…….….. (1080p resolution) ≤8m AWG26 HDMI standard cable

Output cable distance.……….…(1080p resolution) ≤8m AWG26 HDMI standard cable

Transmitter Max working current………………………………………...……….....850mA

Receiver Max working current………………………………...………………….....450mA

Power adapter format……..….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1.5A

Operating Temperature range………………………...……………………(-15℃ to +55℃)

Dimension (L x W x H)………………..............…………………......…….136x78x23 (mm)

Weight…….…..………………………………………………..…….……………………115g



Product picture:


Product interface picture:




Connection and Operation:
1: Connect the HD source to the input of the wireless extender TX with 1 hdmi cable
2: Connect the output of the wireless extender RX to the displays with 1 hdmi cable
3: Connect 5V/1A power adapter to the TX and RX.

4. Reset button: it’s a reset key for system reset,you can press the button for about 10 seconds to restore factory Settings

Package include :

1. HDMI Transmitter & HDMI Receiver
2. Power adapter
3. User manual



Our Services

1. OEM welcomed;

2. Sample test welcomed;

3. Professional engineers to solve your problems;

4. Timely delivery of the goods;

5. 1 year of warranty.

FAQ

1. Why you choose us?
1) We have strong R&D department , we have several new products every month
2) We have SMT lines to control cost well
3) OEM and ODM is welcomed
4) Warranty: 2 years
5)We are HDMI adopter and HDCP adopter
2. Can the price be more cheaper?
A: Yes, depend on the size of your order.
3.How do you ensure the quality of the product?
A: During generation process, we strict control the quality, can check carefully before shipment.
4. can we send you some samples?
A: of course, contact us ask for sample!

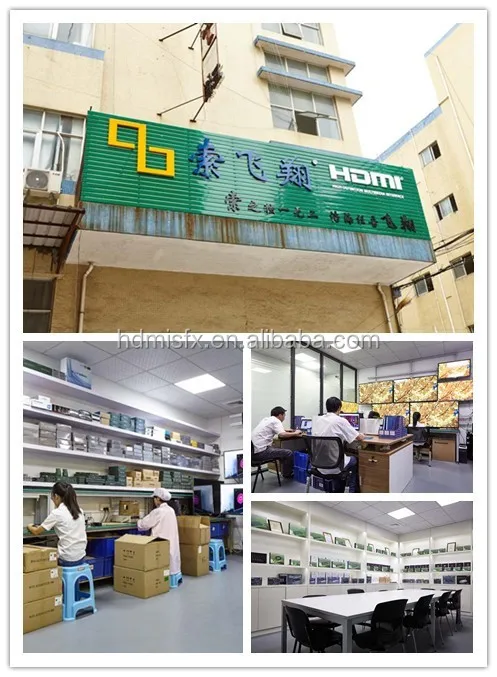

Company Information
