Quick Details

  • Brand Name: SFX
  • Model Number: HDES06
  • Place of Origin: Guangdong, China (Mainland)
  • case: black metal, silver metal, Ultrathin
  • input: hdmi signal
  • output: hdmi signal
  • warranty: 2 years
  • volume: 82x44x22 (mm)
  • function: extend the hdmi signal for at least 30m.
  • HDCP: HDMI 1.2
  • Power Supply:: DC5V/1.5A
  • Power Consumption: HDMI sender : 3W , HDMI Receiver :3W
  • HDTV Resolutions: 480p,576p,720p,1080p

Packaging & Delivery

Packaging Details: color box, or according to customers request.
Delivery Detail: after recepit the deposit 3~5 days.

IR control HDMI extender 30m Ultrathin HDMI extender 30m 1080P, 3D

Product Description

  This Extender uses a single Cat-5E or Cat-6(recommended) cable instead of HDMI cable to transmit high definition signal up to 30 meters, The Extender is designed to supply for long distance transmission with high definition signal.



Features



1.Support HDMI 1.4a

2.Support 3D
3.Support Bi-directional IR control
4.Support highest video resolution 1080p/60Hz
5.Support 1.5Gbps data rate and tmds clock up to 148.5MHz
6.Support 8 bit deep color
7.Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres
8.Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 30 meters between TX and RX.
9.No loss of quality
10.Install in minutes
11.Need AC adapter supply

  Operating and Connecting:

 1.   Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters

2.   Connect one HDMI cable between display device and RX Extender, the max cable distance is 15 meters

3.   Connect TX and RX Extender via single cat 5E/ 6 cable , the max distance is 30 meters

4.   Pls insert the IR RX cables and IR TX cables into the ports of IR RX and IR TX on Transmitter and Receiver

5.   Connect 5V power supply to the TX and RX.

6.   LED indicator light



TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.



RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.







SPECIFICATIONS:







 Length of CAT-6/CAT-5E cable between RX and TX…………….............…..Up to 30 meters



HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i



Support audio.……............................………………………………………….DTS/Dolby/DSD



HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i



Max bandwidth……………………………………………………………………………148.5MHz



Max baud rate……………….…….………………….………….………………………1.5 Gbps



Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p



Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)



Input HDMI cable distance………….…………............…..≤10m AWG26 HDMI standard cable



Output HDMI cable distance............................................ ≤15m AWG26 HDMI standard cable



TX Max working current………………………………………...………….………………...510mA



RX Max working current…………………………………………...………………………...100mA



Power adapter format………...………Input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A



Operating Temperature range……..…………….………………………………… (-15 to +55℃)



Operating Humidity range………………………….….……….5% to 90%RH (No Condensation)



Dimension (L x W x H)     ……………………………….…………………………81x45x18 (mm)



TX Weight…..……………………………………………..………………………........………100g



RX Weight....................................................................................................................95g







The Package includes:



1.       TX Extender x 1pcs



          RX Extender x 1 pc

2.        DC 5V Power adapter x 2 pcs (5V/1A for TX, 5V/500mA for RX)



3,  Bi-directional IRcable x 2 pairs



4.  User Manual



CONNECTION AND OPERATION



Our Services

1. OEM welcomed;

2. Sample test welcomed;

3. Professional engineers to solve your problems;

4. Timely delivery of the goods;

5. 2  years of warranty.



Company Information

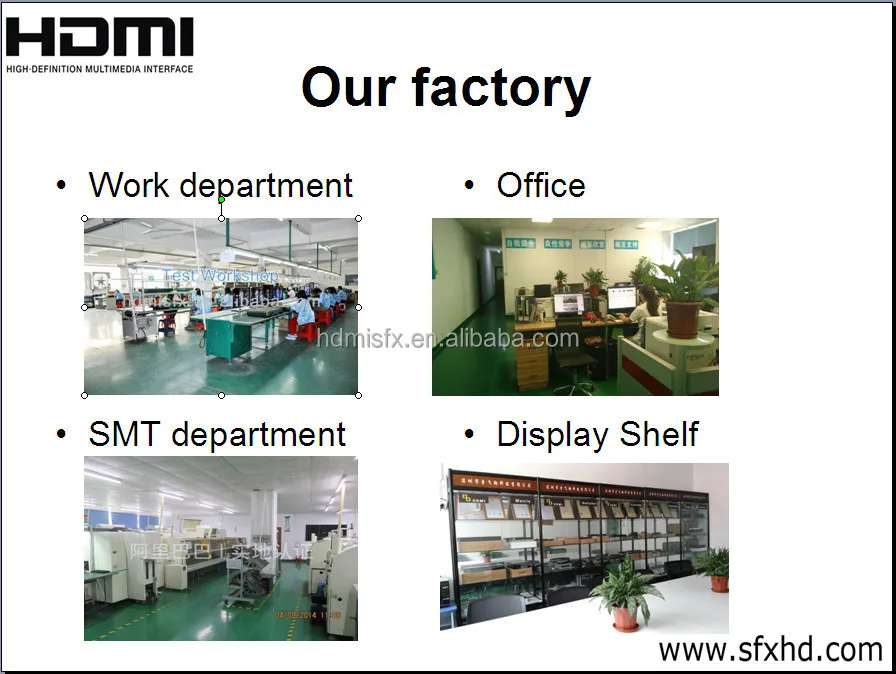

Shenzhen Suo-feixiang technology Co.,ltd is a professional manufacturer of HDMI products since 2009 in Shenzhen ,China , We are the HDMI adopter and HDCP adopter since 2013 , we have ISO9001 certification.
Our main products are HDMi splitter ,HDMI switcher ,HDMI extender ,HDMI repeater ,HDMI matrix ,HDMI converter ,4K HDMI splitter /switcher/ extender , HD baseT extender /Matrix , they have CE, FCC,ROSH,Reach certifications . our products have good market in North America , South America, Europe, Australia , Southeast Asia, Middle east.


Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
