Quick Details

  • Brand Name: SFX
  • Model Number: HDMX4X4-E
  • Place of Origin: Guangdong, China (Mainland)
  • Type: 4k HDMI matrix 4x4 with 4 ports UTP to 100m
  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support audio color format: 36bit
  • Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • output: 4 UTP(HDBaseT) outports
  • Output cable distance: ≤20m AWG26 HDMI standard cable
  • Certifications: ISO9001;HDMI Adopter;CE;FCC;RoHS;REACH
  • Warranty: 2 years
  • OEM: Welcome

Packaging & Delivery

Packaging Details 1 peice to a box, 4 boxes to an export carton
Delivery Time 5-7days

4k HDMI matrix 4x4 with 4 ports UTP to 100m



Description



4k HDMI matrix 4x4 with 4 ports UTP to 100m

1.Support HDMI 1.4 and HDCP1.4

2. support 3D & 4K*2K

3. 4 UTP(HDBaseT) outputs to 100m over cat5e/6

4. With EDID setting & RS232 port

5. ISO9001;CE;FCC;RoHS;REACH



  This 4k HDMI matrix 4x4 with 4 ports UTP to 100m extral infrared receiver extension. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, no matter the source is HDCP or not. Extra infrared receiver extension, IR emitter, RS232 and Ethernet port are supplied for remote control.

  HDMI matrix 4x4 has the ability of equalization and amplification to ensure HDMIsignal's transmission through long cable without quality loss.This HDMI matrix offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



IR call back control the matrix



 Features



  1. Support HDMI 1.4 and HDCP1.4
  2. Support 3D
  3. Support high definition resolutions 1080p, 1080i, 720p and other standard video formats
  4. Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
  5. Support signal timing reset
  6. Support AWG26 HDMI standard cable, input up to 15 metres,output up to 20 metres
  7. Input ports can be controlled by IR Remote Control
  8. Via RS-232 control,the machine can upgrade the software, and the input and the output can be switched by computer
  9. The four outputs could show the same or different source simultaneously no matter the source is HDCP or not
  10. The four outputs all include one HDMI-A connector and one RJ-45 connector. They can output simultaneously

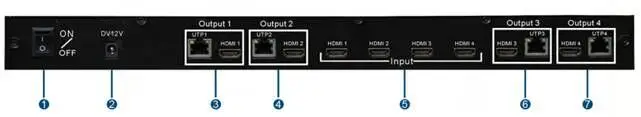

Physical interface diagram

1: Power switch

2: Power Input

3: Output1:HDMI1 and UTP1

4: Output2:HDMI2 and UTP2

5: Input:4 Ports HDMI input

6: Output3:HDMI3 and UTP3

7: Output4:HDMI4 and UTP4

1: Output selection

2: the LED of input for output 1-4 ports

3: IR: used for the IR remote control of this matrix

4: IR RX:IR receiver 1 to 4

5: IR TX:IR emitter 1 to 4

6: RS232 port

7: DIP:DIP Switch for EDID setting


Specifications


HDMI resolution……………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio color format …………………………..…………. …....... .....................36bit

Support audio format……………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max baud rate…….…………….……………………………………....……. ……..3.4GBPS

Input and output TMDS signal………….………………………….....…… 0.5~1.5Volts p-p

Input and output DDC signal……………………………………....………..5Volts p-p (TTL)

Input cable distance.……………………….……………..…….≤10m HDMI standard cable

Output cable distance…………………………….…...≤20m AWG26 HDMI standard cable

Max working current………………………………….……………………………………2.0A

Power adapter format ……………input:AC(50HZ, 60HZ) 100V-240V;output: DC12V/5A

Operating Temperature range……..…………….…………………………… (-15 to +55℃)

Working humidity range…………………………...………5 to 90%RH (No Condensation)

Dimension (L x W x H)……………………………….…..…………………435*170*45(mm)

Weight…..………………………………………………………..…….……….………..1860g


The Package includes:



1. HDMI Matrix           x1pc

2. IR Remote Control      x1pc

3. IR cable (2 pcs receiver and 2 pcs transmitter)

4. 12V DC Power adapter  x1pc

5. User Manual           x1pc


Shipping

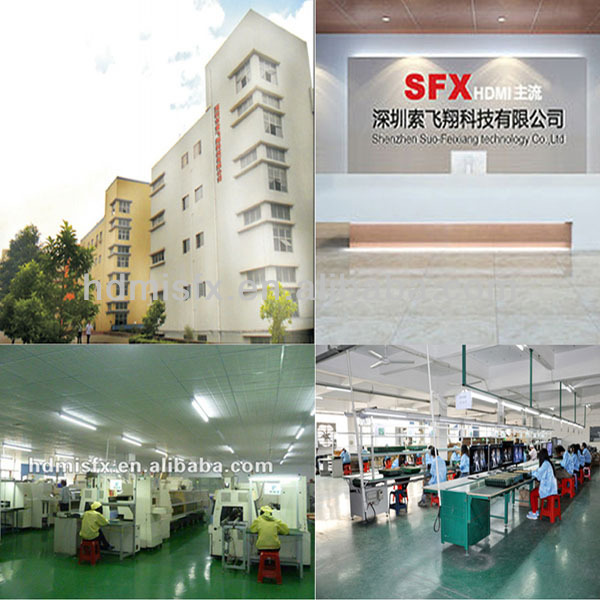

Company view
